This package includes color-keyed badge, grille, mirror caps, 22-inch Black Aluminum wheels and more with your choice of exterior accents. ...less
Luxury Package
Luxury Package
Upgrade your Navigator with unique lighting, heated seating, climate control, speakers and signature grille. ...less
Heavy-Duty Trailer Tow Package
Heavy-Duty Trailer Tow Package
Trailer Reverse Guidance61 technology helps you guide your trailered vehicle with five different perspectives and an auto mode – tracking movement, adjusting cameras and alerting you. ...less
The 2024 Navigator® SUV offers Lincoln Co-Pilot360® 2.0 on all models and comes with features like a Lane-Keeping System and Pre-Collision Assist with Automatic Emergency Braking, which includes Pedestrian Detection and Intersection Assist.61
Reserve model shown.
Lincoln Co-Pilot360™ 2.0 Vision
Lincoln Co-Pilot360™ 2.0 Drive
Blind Spot Information System with Cross-Traffic Alert and Trailer Coverage
Reverse Brake Assist
Evasive Steering Assist
Active Park Assist 2.0
Parallel and perpendicular parking the Lincoln Navigator® SUV requires less effort and strain thanks to Active Park Assist 2.0. Ultrasonic sensors can locate an available spot and help the vehicle steer itself into place while controlling the shifter buttons, brake and accelerator. Plus, with park out assist, the same technology that helped guide you in helps make getting out just as effortless.61
Reserve model shown.
Hill Start Assist
Hill Descent Control™
Front/Side/Rear Parking Sensors
Auto Hold
360-Degree Camera with rear camera washer
Experience a broad perspective of your surroundings. Four cameras on the front, rear and sides merge their images to provide a bird’s-eye view around the vehicle.61 You’ll be able to see down sidewalks while backing up and maneuver into and out of tight parking spots. Plus, a 180-Degree Camera with split-view located in the vehicle’s grille helps boost visibility in cross-traffic intersections and other situations. To help keep your view as clear as possible, the rear camera has a washer that helps keep the camera lens clean.
Reserve model shown.
Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Speed Sign Recognition
Lane Keeping System includes Lane Keeping Aid, Lane Keeping Alert, Driver Alert System and Road Edge Detection
Pre-Collision Assist with Automatic Emergency Braking includes Pedestrian Detection, Intersection Assist, Distance Indication and Alert, Post Collision Braking, Forward Collision Warning and Dynamic Brake Support
OPTIONAL
Lincoln Co-Pilot360™ 2.0 Towing
Media & Technology
STANDARD
Wireless charging pad
Charging your phone is now as simple as setting it down with the wireless charging pad. * Plus, with five fast-charging USB ports, four 12-volt ports and a 110V/150W AC power outlet, all three rows of seating have easy access to power wherever it’s needed.
Lincoln Black Label model shown. Available at participating Lincoln Black Label Retailers only.
*Qi wireless charging may not be compatible with all mobile phones.
Embedded Modem with 4G LTE Wi-Fi Hotspot Capability
SYNC® 4 with Enhanced Voice Recognition
Simple, satisfying technology. Displayed on a 13.2-inch LCD center touchscreen, the SYNC® 4 system gives you hands-free voice control of your vehicle features and some of your favorite smartphone apps.12 With available Lincoln Streaming, you can stream internet radio, listen to podcasts and news, play games and order carryout on the way.*
Lincoln Black Label model shown available at participating Lincoln Black Label Retailers only.
*Requires SYNC® 4 Technology and Lincoln Streaming connected service plan or Wi-Fi network. Vehicle must be in park.
Lincoln Way® App
Stay connected to your vehicle — and the features and benefits of Lincoln ownership — with the Lincoln Way App.164 Unlock and start your Lincoln vehicle remotely. Get Lincoln Roadside Assistance* and personalized customer service with the Lincoln Concierge. And schedule complimentary Lincoln Pickup & Delivery** when your vehicle needs service. The future of driving is at hand. Download the Lincoln Way App now — and experience effortlessness at its finest.
*Roadside Assistance is included for certain owners and available to everyone for a per-service fee. Lincoln reserves the right to change program details without obligations. Lincoln Roadside Assistance is a complimentary offering to all Lincoln owners for up to 6 years or 70,000 miles (from the date of sale), whichever occurs first.
**Complimentary Lincoln Pickup & Delivery service is available for 2017 model-year and newer Lincoln vehicles within the 4-year/50,000-mile New Vehicle Limited Warranty. Owners of vehicles outside of the 4-year/50,000-mile New Vehicle Limited Warranty may arrange for the service at a cost. Mileage limitations may apply.

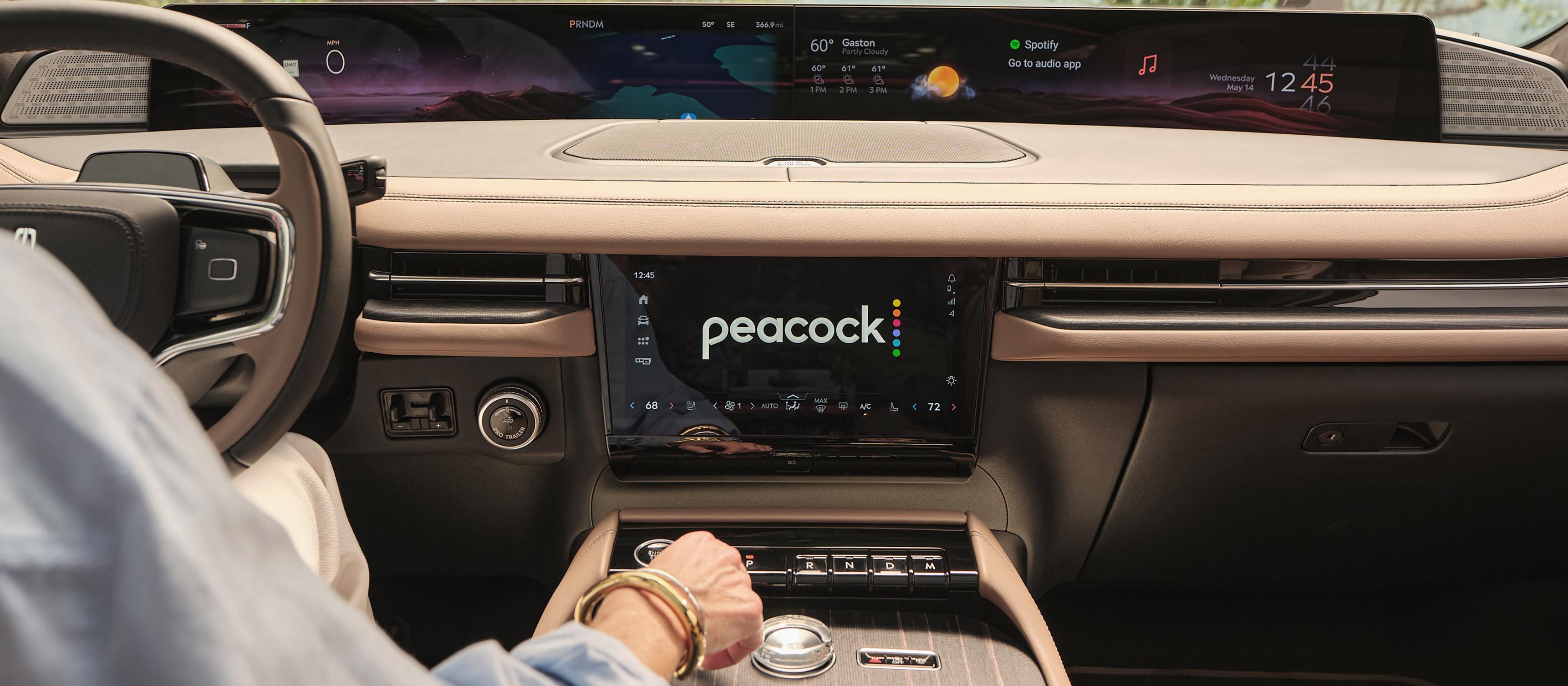

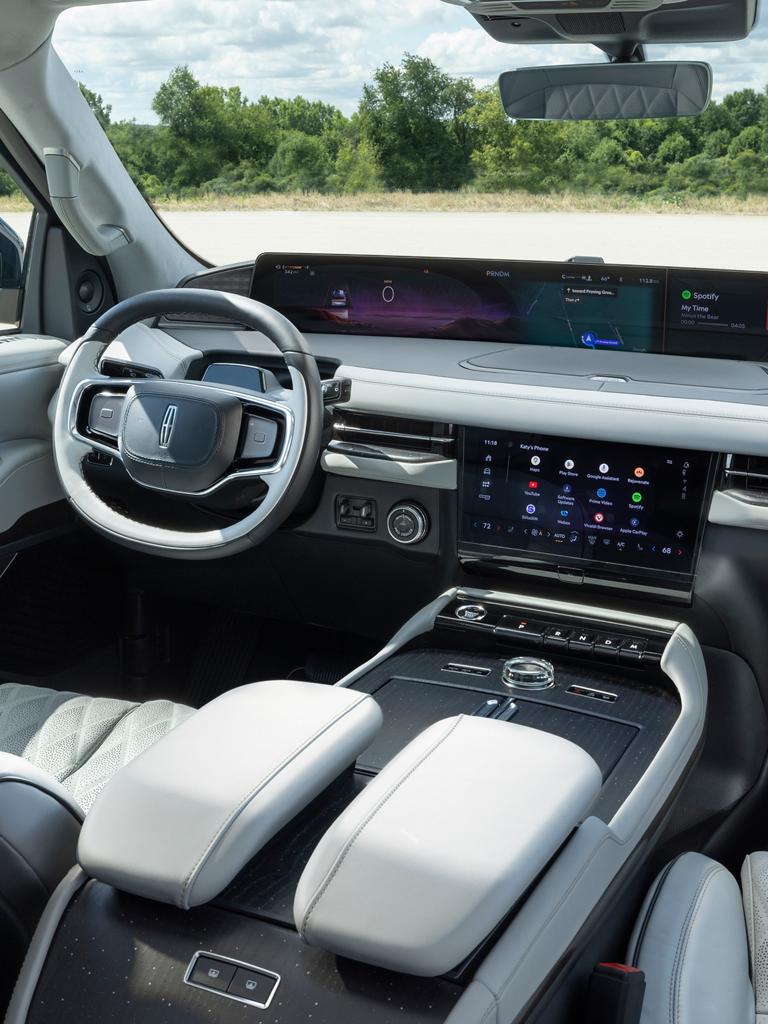

13.2-inch LCD Capacitive Touchscreen in Center Stack with Swipe Capability
The center touchscreen of the Lincoln Navigator® SUV presents users with an easy-to-use layout. With the press of a button, you can access select apps, control navigation, change available seat settings and more.12
Revel® Audio System with HD Radio™ Technology and 14 Speakers
Connected Built-In Navigation System with Pinch-to-Zoom (Complimentary 1-Year Connected Service)
OPTIONAL
Revel® Ultima 3D Audio System with HD Radio™ Technology and 28 Speakers
The Revel Ultima 3D Audio System combines form and function to reproduce a live-music type of experience right in the comfort of your vehicle. Twenty-eight carefully placed speakers as well as Stereo, Audience and Onstage listening modes help make the sounds you hear as pure and rich as they were originally intended.
Lincoln Black Label model shown. Available at participating Black Label Retailers only.
Luxury & Convenience
STANDARD
Auto High-Beam Headlamps
Adaptive Pixel Projector Headlamps
Dimensional form and fluid functionality. Standard Adaptive Pixel LED Headlamps feature lighting technology that provides additional illumination as needed with changing driving situations. The system propels light ahead at highway speeds and creates a wider beam at slower speeds. Because the LEDs selected for use in the Navigator® SUV were designed for the lifetime of the vehicle, you may never need to replace a single one.
Lincoln Black Label model shown available at participating Lincoln Black Label Retailers only.
Lincoln Embrace
From the moment you approach, the Lincoln Navigator® SUV guides the way. When your key fob is within a detectable range, autofold side mirrors project a signature Lincoln logo welcome mat on the ground below the front doors, door handles glow, and front and rear running lamps engage in a thoughtfully timed sequence.
Reserve model shown.
Power Liftgate
Easy Fuel® capless fuel filler
Acoustic Laminated Side Door Glass
Privacy Glass for Rear Door, Quarter and Liftgate Windows
Frameless, Auto-Dimming Rearview Mirror
Universal garage door opener
Overhead Console with Sunglasses Holder and Conversation Mirror
Remote start system
Enhanced Active Noise Control
Personal Profiles
Adjusting to your preferences upon your arrival. With personal profiles, up to three key fobs* can be programmed to instruct your Lincoln Navigator® SUV to adjust a number of features, even as you approach, that have been specifically set for different drivers. Profiles can also be accessed and initiated through the SYNC® 4 home screen. You can preset a variety of settings that adjust as soon as you approach and enter the vehicle, including audio, climate, displays, driver-assist features, mirrors, pedals and seats.12
Reserve model shown.
*Two key fobs provided at time of purchase. Additional fobs can be purchased through your Lincoln Retailer.
Lincoln Drive Modes
Satisfy both your desire for control and need for excitement with the simple twist of a dial. From Conserve to Excite, the Lincoln Navigator® SUV offers five standard distinct selectable drive modes for confidence, exhilaration and control in a wide variety of driving conditions. Each mode has a number of calculated settings that tune the vehicle, including the standard adaptive suspension, shift points, information displays and more. Additionally, there is a two-speed transfer case available Heavy-Duty Trailer Tow Package.
Power-Adjustable, Autofold, Heated Side-view Mirrors with Integrated LED Turn Signals Indicators, Memory and Driver's Side Auto-Dimming Feature
Tri-Zone Electronic Automatic Temperature Control with Rear Auxiliary Climate Controls and Vents
Exterior Features
STANDARD
Body-Colored Bumpers
Body-Colored Rear Spoiler
Chrome Roof Rack Side Rails
Illuminated Power-Deployable Running Boards
Power-deployable running boards extend and illuminate to greet you — helping to lead the way and to assist you as you enter and exit the vehicle.
Reserve model shown.
Doors Handles with chrome insert
Bright Belt Molding
Dual Bright Exhaust System
Daytime Running Lights - LED
LED Fog Lamps
Lincoln Signature Lighting - LED
Lincoln Signature Grille with Bright Chrome Surround
Active Grille Shutters
Tail Lamps and Backup Lamps - LED

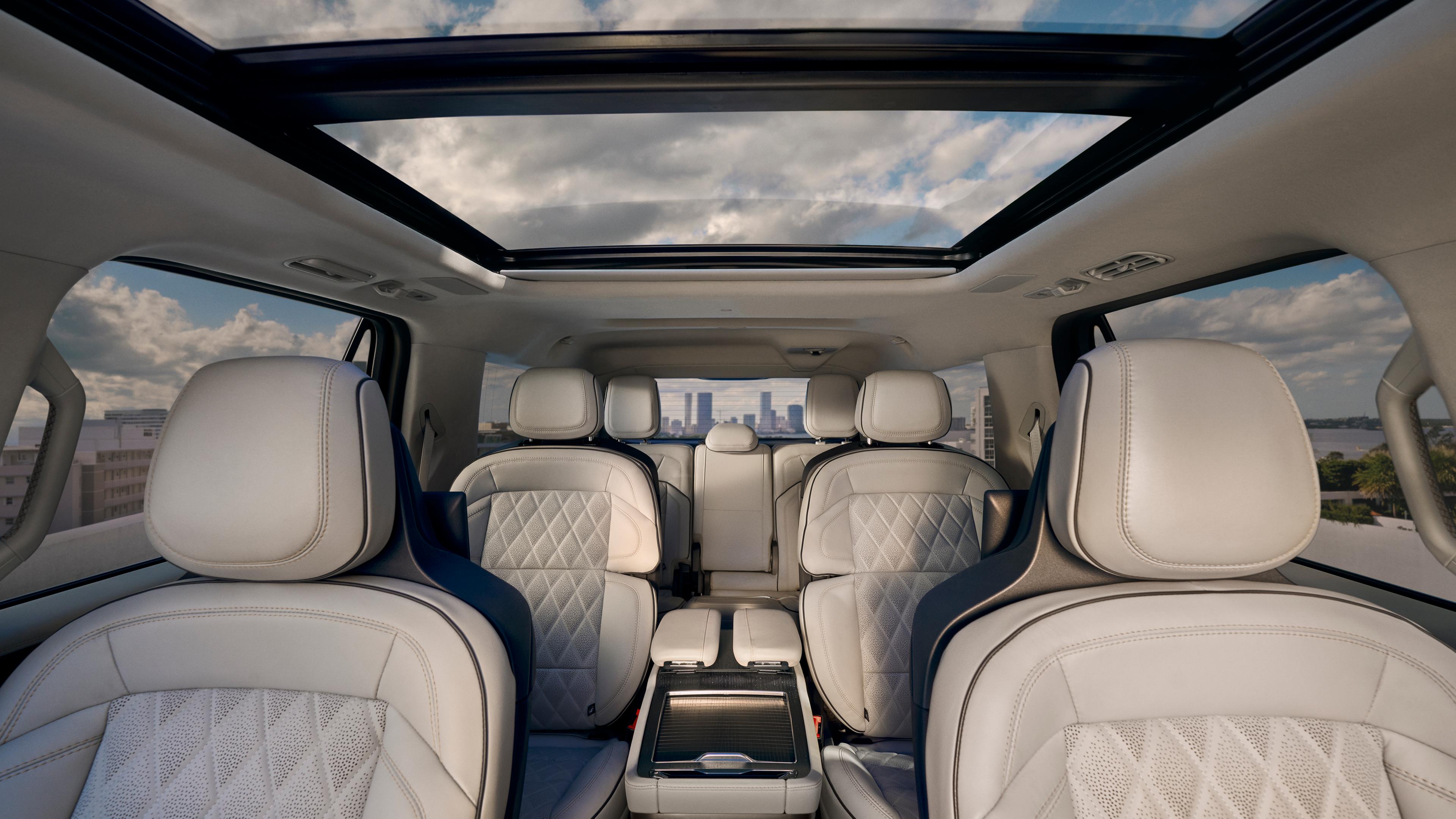

Panoramic Vista Roof®
1st-Row Reading Lamps - LED
22-inch Bright-Machined Aluminum Wheel with Premium Painted Pockets
18-inch Spare Wheel
OPTIONAL
Illuminated Lincoln Star in Grille
The illuminated Lincoln Star in the signature grille is something to be seen and helps others see you. As part of the Luxury Package, an LED-illuminated Lincoln Star logo shines as you approach. While you are driving, the illuminated star continues to shine, making a bold statement.
Lincoln Black Label Navigator model shown. Available at participating Lincoln Black Label Retailers only.
1st- and 2nd-Row Illuminated Belt Buckles
22-inch Black Aluminum Wheel
22-inch 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black-Painted Pockets
Interior Features
STANDARD
Genuine Wood Accents
Bring the outside world in. Add natural beauty to your interior sanctuary with hand-selected wood inlays chosen from a single piece of timber to ensure elegant grain lines. The genuine wood trim on the front center console and wood inserts integrated into the dashboard add a luxurious touch. Each Lincoln Black Label theme features a unique wood appliqué: walnut for Central Park, Khaya for Invitation, silverwood for Chalet and white-washed teak for Yacht Club. Espresso ash swirl and santos rosewood are integrated in Premiere and Reserve models.
Lincoln Black Label model shown available at participating Lincoln Black Label Retailers only.
Leather-Wrapped Steering Wheel with Audio and Cruise Controls
Coat Hooks - (2) Second Row, (2) Third Row
Carpeted first- and second-row floor mats
Instrument Cluster - 12" Configurable LCD Display
Ambient lighting
Power-Adjustable Pedals with Memory
Power Tilt/Telescoping Steering Column with Memory
Front Visors with Illuminated Vanity Mirrors
Power Windows with One-Touch-Up/Down and Global Open Feature
Power door-locks with autolock
Rear window defroster with washer and intermittent wiper
Front center console with winged armrests and storage
Glove compartment - lockable
Illuminated Front Door-Sill Scuff Plates
Piano Key Shifter
Performance comes at the touch of a button. The Piano Key Shifter seamlessly blends into the center console’s design to optimize space inside the Lincoln Navigator® SUV.
Reserve model shown.
110V/150W AC power outlet
Powerpoints
Heated steering wheel
Rain-sensing front wipers
Head-Up Display
The head-up display* helps to prove that what lies ahead is just as important as what is happening now. The system helps to create a custom driving experience by letting drivers choose what data to display, from standard driving information to Intelligent Adaptive Cruise Control settings, Lane-Keeping System information and more. Digital light projection technology allows the display to be visible in different ambient lighting conditions.
Reserve model shown.
*Don’t drive while distracted. See Owner’s Manual for details and system limitations.
Perfect Position 24-Way front seats with leather seating surfaces
The Perfect Position front seats with Active Motion® massage put you in control of your own comfort. With their wide range of movement, 11 independent air cushions, heating, ventilation for cooling and independent thigh extenders, the seats can be easily adjusted for a ride that is both relaxing and rejuvenating.
Lincoln Black Label model shown available at participating Lincoln Black Label Retailers only.
3rd-Row 60/40 PowerFold® Split Bench Seat with Power Recline
OPTIONAL
All-Weather Floor Liners - 1st- and 2nd-rows
2nd-Row Enhanced Massage Captain Chairs with Floor Console and 5.8-inch touchscreen on console
2nd-Row Enhanced Massage Captain Chairs without Floor Console
2nd-Row Heated/Ventilated Outboard 40/20/40 Split Bench with PowerFold®
2nd-Row PowerFold® Captain Chair Seats - 40/Console/40 seating includes 5.8-inch touchscreen on console
Perfect Position 30-Way front seats with Active Motion® functionality, leather seating surfaces including power thigh extenders and head restraints
Towing
STANDARD
Trailer Tow Prep Package
OPTIONAL
Electronic Traction Assist (eLSD) (part of Heavy Duty Trailer Tow)
Pro-Trailer Backup Assist™2.0
Trailer Reverse Guidance
Trailer Brake Controller
Two-Speed Transfer Case (includes Slow Climb drive mode)
Smart Entry & Security
STANDARD
Intelligent access with push-button start
SecuriCode™ keyless entry keypad
Safe and sound. The 2024 Lincoln Navigator® SUV keeps your mind at peace with a variety of standard security features. For access, the Remote Keyless Entry System includes SecuriCode® keyless entry keypad and MyKey® technology. The Navigator is also equipped with a battery saver and electric parking brake. Additionally, the standard Enhanced Security Package features a perimeter alarm as well as intrusion and inclination sensors.
Reserve model shown.
Remote Keyless Entry System
Battery saver
Electric parking brake
Phone As A Key
Enhanced Security System - Perimeter Alarm, Passive Anti-Theft System and Intrusion and Inclination Sensors
Safety
STANDARD
Four-wheel disc Anti-lock Brake System (ABS)
Dual-Stage front Airbags
Working to keep you covered. The Lincoln Navigator® SUV has a sophisticated system of airbags,* including driver and front-passenger dual-stage, Safety Canopy®, side curtains with rollover sensor and side-impact front airbags.
*Always wear your safety belt and secure children in the rear seat.
Reserve model shown.
Side Impact Airbags - Front-Row Seats
Safety Canopy® Side Curtain Airbags with Roll Over Sensor
Belt-Minder®
Child-safety rear door locks
Crash Severity Sensors - front
LATCH (Lower Anchors and Tether Anchors for Children)
SOS Post-Crash Alert System™
Personal Safety System™
Tire Pressure Monitoring System (excludes spare)
Traction Control
Packages
OPTIONAL
Luxury Package
Heavy-Duty Trailer Tow Package
In situations where power truly matters, the Lincoln Navigator® SUV delivers. The Heavy-Duty Trailer Tow Package features a Class IV trailer hitch with 4-pin and 7-pin connectors, Smart Trailer Tow Connector, trailer brake controller and trailer sway control. This package offers greater confidence and control when towing heavy loads in virtually any driving condition. Plus, with Pro Trailer Backup Assist™ 2.0, you can let go of the wheel61 and use a simple knob to back up your trailer. Additionally, a two-speed transfer case and Slow Climb drive mode are included on 4x4 models. You’ll also enjoy a Tiered Cargo Management System with a four-way configurable partition.
Lincoln Black Label Navigator model shown. Available at participating Lincoln Black Label Retailers only.
Lincoln Play (Rear Seat Entertainment System)
Monochromatic Package
Accessories
OPTIONAL
Front license plate bracket (included in states that require front license plates)
Roof Rack Cross Bars
Warranty
STANDARD
Bumper to Bumper: 4 years / 50,000 miles
Corrosion (Perforation only): 5 years / Unlimited miles
Powertrain: 6 years / 70,000 miles
Roadside Assistance Program: 6 years / 70,000 miles
Leg Room - third row (in.) (second-row seat full forward)
40.9
40.9
Hip Room - first row (in.)
61.9
61.9
Hip Room - second row (in.)
61.6
61.6
Hip Room - third row (in.)
51.4
51.4
Shoulder Room - first row (in.)
65.2
65.2
Shoulder Room - second row (in.)
65.1
65.1
Shoulder Room - third row (in.)
64.2
64.3
Capacities
Capacities
Navigator 4X4
Navigator L 4X4
Standard Seating Capacity
7
7
Maximum Seating Capacity
8
8
Passenger Volume (cu.-ft.)
172.0
172.1
Cargo Volume behind first row (cu.-ft.)
103.3
120.2
Cargo Volume behind second row (cu.-ft.)
57.5
73.3
Cargo Volume behind second row (cu.-ft.) (second-row seat full forward)
63.6
79.6
Cargo Volume behind third row (cu.-ft.)
19.3
34.3
Cargo Volume behind third row (cu.-ft.) (third-row seat full upright)
20.9
36.0
Fuel Capacity (gallons)
23.0
27.0
Base Curb Weight (lbs.)
5,855
6,056
Maximum Towing Capacity (when properly equipped)
8,300
8,100
Powertrain
POWERTRAIN
Navigator
Navigator L
Engine type
Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology
Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology
Transmission
10-Speed SelectShift® Automatic Transmission with paddle activation
10-Speed SelectShift® Automatic Transmission with paddle activation
Transmission Oil Cooler
Yes
Yes
Horsepower (SAE net @ rpm)
440 @ 5,850 rpm*
440 @ 5,850 rpm*
Torque (lb.-ft. SAE net @ rpm)
510 lb.-ft. @ 3,000 rpm*
510 lb.-ft. @ 3,000 rpm*
Fuel Delivery
Direct injection
Direct injection
Compression Ratio
10.5:1
10.5:1
Exhaust
Dual
Dual
Brakes
4-Wheel Disc
4-Wheel Disc
Drive
4X4 Standard
4X4 Standard
Rear Axle Ratio
3.73 (Non-Limited Slip)
3.73 (Non-Limited Slip)
*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. Horsepower and torque are independent attributes and may not be achieved simultaneously.
Chassis
Chassis Specifications
Navigator
Navigator L
Front Suspension
Independent Short- and Long-Arm (SLA) with coil-over semi-active shocks and stabilizer bar
Independent Short- and Long-Arm (SLA) with coil-over semi-active shocks and stabilizer bar
Rear Suspension
Independent Multi-Link with coil-over semi-active shocks and stabilizer bar
Independent Multi-Link with coil-over semi-active shocks and stabilizer bar
Suspension
Adaptive Suspension with Road Preview
Adaptive Suspension with Road Preview
Front and Rear Brakes
Power Four-Wheel Disc Anti-lock Brake System (ABS)
Power Four-Wheel Disc Anti-lock Brake System (ABS)
Vehicle Control
AdvanceTrac® with Roll Stability Control™ and Hill Descent Control
AdvanceTrac® with Roll Stability Control™ and Hill Descent Control
By entering your mobile phone number, you expressly consent to receive a text message on your mobile phone. Standard messaging and data plan rates may apply.
Now you can view exclusive price savings on our Build & Price shopping tool.
Note: A/Z Plan pricing information is not available on all Ford websites. In addition, some vehicles, trims or options you select may not qualify for A/Z Plans. Also, some dealers may choose not to participate in A/Z Plan pricing. Contact your local dealer to determine their level of participation in the program and final vehicle pricing.
What happens if I close this site before I’m finished?
If you close your window or tab, you must re-access the site through the A/Z Plan Pricing website to ensure that all eligible plan pricing is visible. If you need additional information concerning the A/Z Plans, please refer back to your A/Z Plan Pricing website for complete details.
A/X/Z Plan pricing, including A/X/Z Plan option pricing, is exclusively for eligible Ford Motor Company employees, friends and family members of eligible employees, and Ford Motor Company eligible partners. Restrictions apply. See your Ford or Lincoln Dealer for complete details and qualifications. Ford Motor Company reserves the right to modify the terms of this plan at any time.
Now you can view exclusive price savings on our Build & Price shopping tool.
Note: X Plan pricing information is not available on all Ford websites. In addition, some vehicles, trims or options you select may not qualify for X Plans. Also, some dealers may choose not to participate in X Plan pricing. Contact your local dealer to determine their level of participation in the program and final vehicle pricing.
What happens if I close this site before I’m finished?
If you close your window or tab, you must re-access the site through the X Plan Pricing website to ensure that all eligible plan pricing is visible. If you need additional information concerning the X Plans, please refer back to your X Plan Pricing website for complete details.
A/X/Z Plan pricing, including A/X/Z Plan option pricing, is exclusively for eligible Ford Motor Company employees, friends and family members of eligible employees, and Ford Motor Company eligible partners. Restrictions apply. See your Ford or Lincoln Dealer for complete details and qualifications. Ford Motor Company reserves the right to modify the terms of this plan at any time.
